Your imagination is the limit
when exploring the myriad of applications ELF can offer. Below represents
applications that are current and future ELF capabilities.
|
Architecture | Administration |

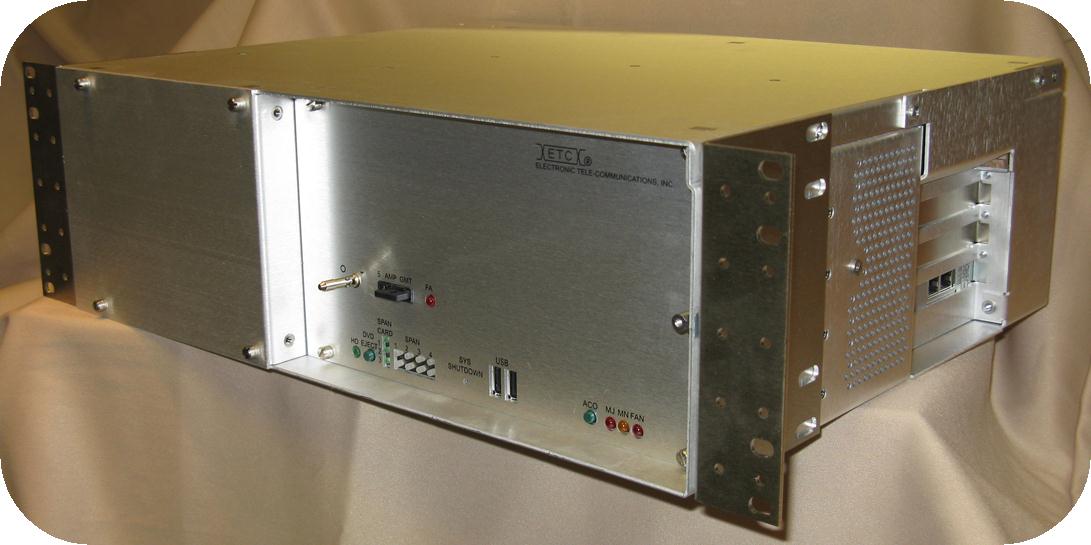

Application Future-ability Open Architecture = Flexibility Ease of Administration Every Emcee ELF3 is equipped with RAID hard drives. The Emcee ELF3 can support up to three span interface (T1, E1) cards that can be equipped to handle a single (1) span, a double (2) span, or a quad (4) span card, supporting up to twelve T1 spans maximum. Any number of spans can be set up to enable ISDN/PRI. One Platform, Multiple Applications Unlimited Potential |
Enclosure | 16" W x 13" D x 5.5" H (3u) Front mount or 4.5" offset. 19", 21" 23" standard mount. Adapters available for other sized racks. |
Power Requirements | -40VDC to –60VDC, -48 VDC inputs nominal, 5A maximum 2A typical. |
Cooling | Unit has internal fan cooling with alarms and removable filter. It is not necessary to allow air space above and below enclosure. |
Operating Temperature | 10° to 40°C (50° to 104° F) |
Relative Humidity Non-Condensing | 10% to 80% |
Interfaces | T1, E1, ISDN/PRI, Ethernet (10/100 Mb) |
Signaling and Protocols | SMDI, MFR1, MFR2, DTMF |
Architecture | PCI® |
Operating System | Windows® 2003 |
Processor | Pentium® technology |
Memory | 1 GB standard |
Hard Drive | 160 GB SATA RAID |
USB Ports | 4 (2 front, 2 back) |
Backup Software | Optional with flash drive and loaded SATA hard drive. |
MTBF | Disk Drive: 1,200,000 hours |
Design Compliances | NEBS, FCC Part 15 and 68, UL1950, R1129/1129+, Q.920, Q.921, Q.930, Q.931, Q.932 |
